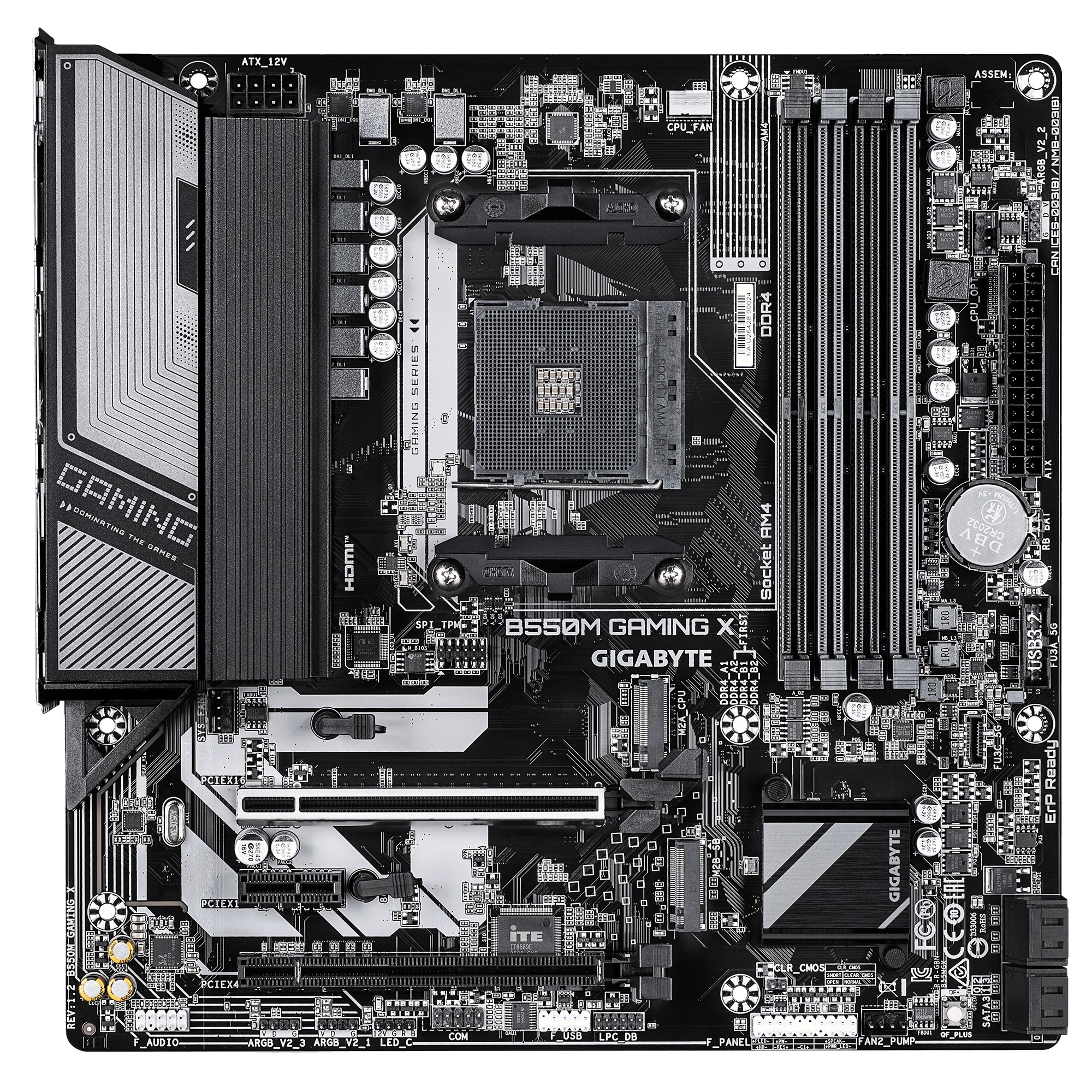

Gigabyte B550M GAMING X (Rev. 1.2) AM4 mATX

Gigabyte B550M GAMING X (Rev. 1.2) Chipset: AMD B550Rozměrový formát: Micro ATX Form Factor; 24.4cm x 24.4cm Podpora pro procesory:  *AMD Ryzen™ 5000 G-Series Processors *AMD Ryzen™ 5000 Series Processors *AMD Ryzen™ 4000 G-Series Processors *AMD Ryzen™ 3000 G-Series Processors *AMD Ryzen™ 3000 Series Processors Patice procesoru: AM4 Paměť:  *4x DDR4 DIMM sloty podporující až 128GB (32GB každý slot) paměti *Podpora pro DDR4 3200/2933/2667/2400/2133 MT/s moduly *Dual channel memory architecture *Podpora pro ECC Un-buffered DIMM 1Rx8/2Rx8 moduly *Podpora pro non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 moduly *Podpora pro XMP Grafické porty: Integrated Graphics Processor with AMD Radeon™ Graphics support: *1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz *1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Zvuková karta:  *Realtek® ALC1220 CODEC *High Definition Audio *2/4/5.1/7.1-channel Ethernet: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) Rozšiřující sloty: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: *AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode *AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode Chipset: *1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4 *1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1 RAID řadič: RAID 0, RAID 1, RAID 10 Úložný prostor:  1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: *AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs *AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors USB:  CPU: *4 x USB 3.2 Gen 1 ports on the back panel Chipset: *1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header *2 x USB 3.2 Gen 1 ports available through the internal USB header *4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Interní porty:  Napájení *1× 24-pin ATX main power connector *1× 8-pin ATX 12V power connector *1× CPU fan header *1× CPU fan / water cooling pump header *1× system fan header *1× system fan / water cooling pump header Související s úložištěm *2× M.2 Socket 3 connectors *4× SATA 6Gb/s connectors USB *1× USB Type-C header, USB 3.2 Gen 1 *1× USB 3.2 Gen 1 header *1× USB 2.0/1.1 header Ostatní *3× addressable RGB Gen2 LED strip headers *1× RGB LED strip header *1× front panel header *1× front panel audio header *1× Trusted Platform Module header *1× serial port header *1× Clear CMOS jumper *1× Q-Flash Plus button Porty na zadním panelu:  *2 x USB 2.0/1.1 ports *1 x PS/2 keyboard/mouse port *1 x HDMI port (Note) *1 x DisplayPort (Note) *4 x USB 3.2 Gen 1 ports *1 x RJ-45 port *2 x antenna connectors *3 x audio jacks BIOS:  *1 x 128 Mbit flash *Use of licensed AMI UEFI BIOS *PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 H/W Monitorování: *Voltage detection *Temperature detection *Fan speed detection *Overheating warning *Fan fail warning *Fan speed control OS: Podpora pro Windows 11 64-bit a Windows 10 64-bit
